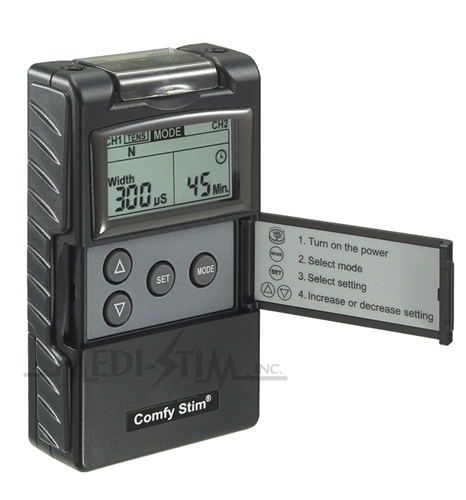

Medi-Stim Comfy 4 TENS/EMS

Features

• Dual channel (4-lead) digital TENS/EMS

• 5 TENS Modes (Normal, Burst, Modulated Rate & Width, SD1, SD2)

• 2 EMS Modes (Simultaneous, Alternating)

• High-tech design with metallic finish and LCD display

• Stronger 100 mA amplitude

• Treatment timer (1-60 minutes or Continuous)

• Last setting recall

• Compliance monitor

• Low Battery power indicator

• Hinged protective cap for intensity dials

• Heavy duty metal belt clip

• 3-year warranty

• Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 43” pin lead wires, 1 each 9V heavy duty battery, carrying case, and instruction manual

Technical Specifications

• Channels: Dual, isolated between channels

• Wave Form: Asymmetrical Biphasic Square Pulse

• Amplitude: 0-100 mA (peak to peak into 500 ohm load each channel)

• Output Voltage: 0 to 50V (500 ohm load)

• Modes: 5 TENS Modes: B (Burst), N (Normal), M (50% Modulated Rate & Width), S1 (40% Modulated Intensity & Width), S2 (70% Modulated Intensity &Width) 2 EMS Modes: S (Synchronous), A (Alternating)

• Pulse Rate (Frequency): 2 - 150 Hz, 1 Hz/step

• Pulse Width (Duration): 50 - 300 microseconds (μs), 10 μs/step

• Contraction (On) Time: 2 - 90 seconds, 1 sec/step

• Relaxation (Off) Time: 0 - 90 seconds, 1 sec/step

• Ramp Up/Down Time: 1 - 8 seconds, 1 sec/step (The “On” time will increase and decrease in the setting value)

• Treatment Timer: 1 - 60 minutes or Continuous (C)

• Compliance Usage Meter: Records up to 60 sessions, up to 999 hours

• Low Battery Indicator: Battery symbol appears when battery power is low

• Power Supply: One 9 Volt Battery

• Size: 4” (L) x 2.4” (W) x 1” (D)

• Weight: 5.2 oz. with battery
